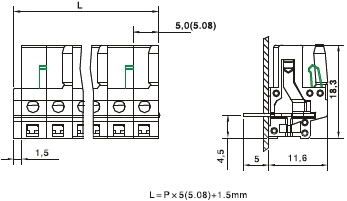

TCWZ5.0G/5.08-B series female curved pin socket
model | TCWZ5.0G-B-XXP;TCWZ5.08-B-XXP | ||
bit spacing | 5.0mm/5.08mm | ||
number of digits | 2-24P | ||
Technical data | IEC | UL | |
Rated voltage | V | 250 | 300 |
Rated current | A | 12 | 10 |
Rated impulse voltage | KV | 4 | |
pollution level | 3 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃~+105℃ | ||
can choose colour | 5.0 pitch (grey); 5.08 pitch (orange) | ||
Contact material | tinned copper | ||
Solder pin size | 1.0*1.0mm | ||
